DL-CHZ-2 Tea Processing Technology Tea Leaf Drying Machine Boost Your Tea Production

Product Categories

Tea Plucking Machine [107]
Tea Rolling Machine [31]
Tea Dryer Machine [29]
Tea Processing Machine [18]
Tea Withering Machine [13]
Oolong Tea Drum Shaking Machine [15]
Tea Fixation Roaster Machine [62]
Tea Fermentation Machine [8]
Tea Deblocking Machine [4]
Tea Winnowing Machine [3]
Tea Packing Machine [45]
Tea Production Auxiliary Equipments [10]
Tea Moisture Meter [11]
Ungrouped [119]

Quanzhou Deli Agroforestrial Machinery Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

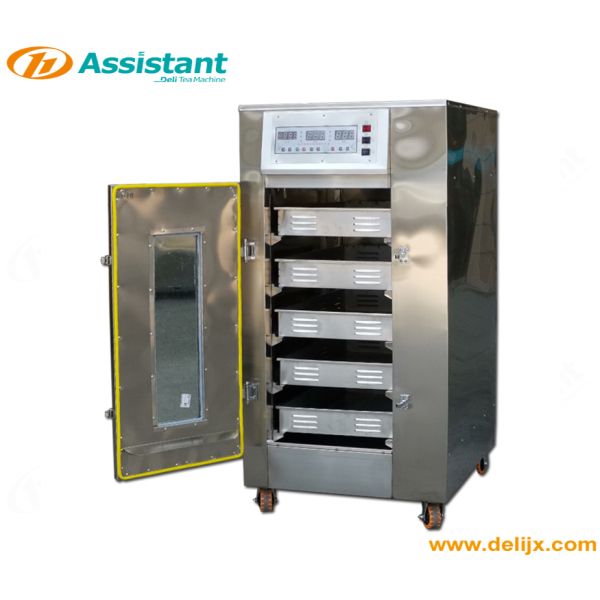

DL-CHZ-2 Tea Processing Technology Tea Leaf Drying Machine Boost Your Tea Production

Name: DLCHZ2 Tea Processing Technology Tea Leaf Drying Machine Boost Your Tea Production
Brand: DELI ASSISTANT
Price: 839.00 USD

DL-CHZ-2 Tea Processing Technology Tea Leaf Drying Machine Boost Your Tea Production Manufactures

Condition : New

Applicable Industries : Farms, Retail, Food & Beverage Shops

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Core Components : Engine, Bearing

Brand Name : DELI ASSISTANT

Place of Origin : China

Voltage : 220v

Power : 3.0kw

Dimension(L*W*H) : 710*680*1350

Weight : 290 KG

Warranty : 1 Year

Application fields : tea leave

Raw material : tea leave

Output product name : tea leave

Heating type : Electric heating

Heating power : 3 kw

Pallet rotary speed : 6 rpm

Pallet layer : 10 layers

Drying area : 2.12 m2

Price : $839.00/sets 1-4 sets

Contact Now

DL-CHZ-2 Tea Processing Technology Tea Leaf Drying Machine Boost Your Tea Production

Tea Garden Management Equipments

Tea Withering Machine

Tea leaf fixation machine

Tea Rolling Machine

Tea Fermentation Machine

Tea Dryer Machine

these machine is part of the tea planting and production, If you want to know more information about these machines, or there is no machine you need here.please contact us.

Tea drying machine description

For non-fermented tea such as green tea: evaporate water, tighten the tea, make the tea fully dry, divergent to remove the grassy taste, enhance the aroma of the tea.

For fermented tea such as black tea: the activity of the enzyme is destroyed by high temperature, the enzymatic oxidation is interrupted, and the quality of the tea is maintained.
Evaporate the water in the tea leaves, so that the tea leaves are fully dried, divergent to remove the grassy taste, and enhance the aroma of the tea leaves.

For herbal tea: Evaporate water, tighten flowers and plants, and keep the original color and original aroma

Tea drying machine usage

Tea drying machine can process almost all tea: such as black tea, green tea, oolong tea, and herbal tea.

Model	DL-CHZ-2
Dimension	7106801350
Voltage	220v
Heating type	Electric heating wire
Heating power	3.0kw
Pallet rotary speed	6rpm
Drying area	2.12m2
Pallet layers	10layers
Efficiency	6kg/batch

The above data is based on fresh tea leaf water content of 30-40%

Model	6CHZ-2	6CHZ-5	6CHZ-9	6CHZ-14	6CHZ-34
Trays Quantity	10 pcs	14 pcs	16 pcs	16 pcs	36 pcs
Trays Diameter	50 cm	70 cm	90 cm	110 cm	110 cm
Drying Area	2 m2	5 m2	9 m2	14 m2	34 m2
Capacity	6-8 kg	15-20 kg	27-36 kg	42-56 kg	102-136 kg

Intelligent temperature and time control system

Microcomputer temperature controller is adopted, keep the temperature difference below 1℃.

Add mechanical temperature limiting module to ensure precise temperature control.

The drying time is adjustable, alarm will be made at the end of drying ( can manually choose to turn on or off ).

Patent duct design

The design of the wind tunnel has got the national patent, which makes the heat more uniform, the drying is more efficient and the noise is lower.

Copper core motor

Copper core motor is used to ensure smooth operation of the machine, ensure heat transfer and moisture vapor emission.

Heat-insulation system

The metal plate inside the machine is coated with special coating, which reflects the heat inside the machine. The heat loss is small and the drying speed is faster.

Tea drying machine modular design

The whole tea drying equipment adopts modular design, and after-sales service is more convenient.

Rotary drying method for tea

Tea drying machine using rotary drying design, the tea is heated more evenly and has better quality.

If you are interested in tea drying machine, please click here to send us enquiries.

Obtain ISO9001 quality system certification

More than 30 Chinese honorary certificates
More than 20 Chinese national patent certificates
More than 50 promotion certificates of China Agriculture Ministry

Customers visit our factories

Part of the our workshop photos
